Simco Static Removal GunItem In Stock! Item Code: ES/GUNREMOVER
£795.00
( Incl VAT VAT £954.00)

‏

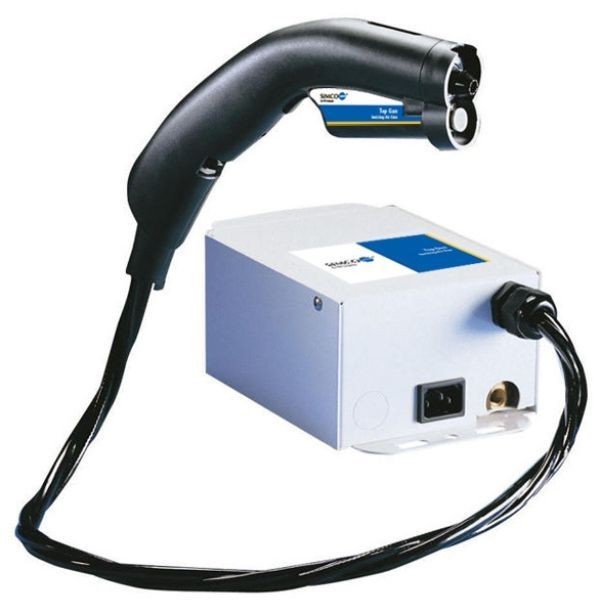

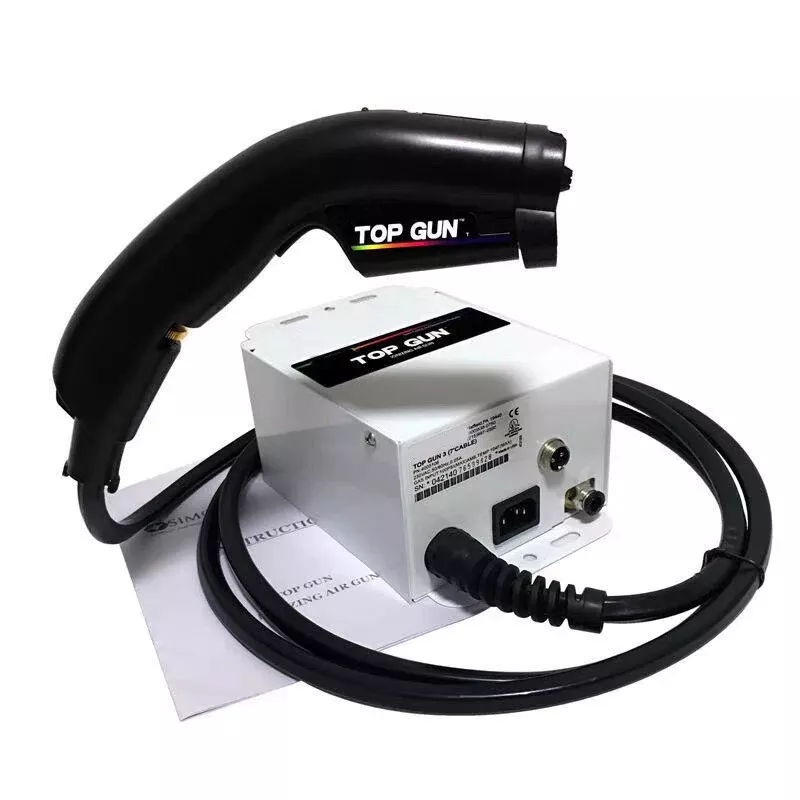

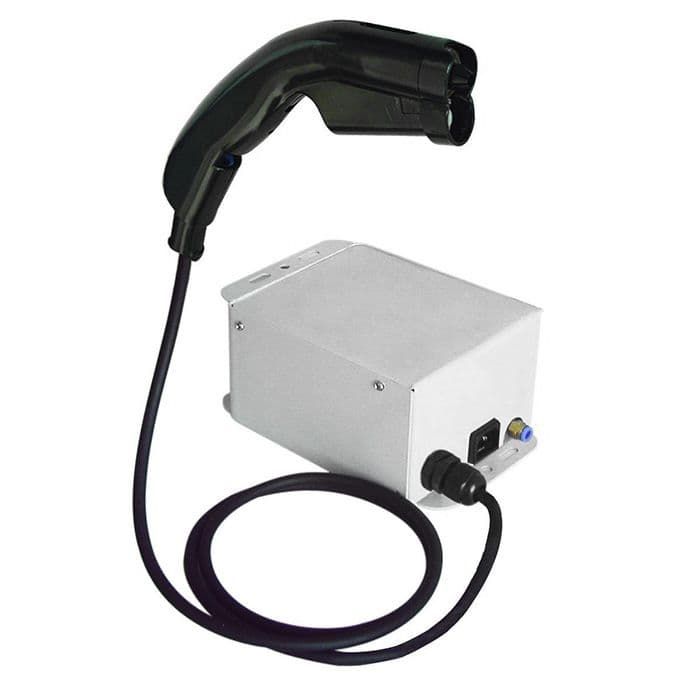

Static Removal Gun - Simco Ionizing Blow-off Gun Top Gun

Simco Ionizing Blow-off Gun Top Gun easily removes stubborn flock fibres from surfaces by getting rid of troublesome charges that are responsible for the attraction of fibres to product surfaces. The Top Gun is designed for the user's comfort with a flexible cord and easy-to-use gun trigger switch. The blow-off gun accepts both compressed air or inert gases; including nitrogen. UL and CUL approved.
The Top Gun is a useful addition to any user of flock, and our flocking equipment.

Features
• Lightweight, Ergonomic Design
• Flow Control Valve for Adjustable Airflow
• Electrically balanced ion output
• Integrated, Replaceable Filter-Nozzle
• Ionization Indicator Light

Benefits
• Maximum user comfort prevents operator fatigue and increases productivity
• Airflow use that meets the specific application requirements
• Protects ESD sensitive components and assemblies
• Insures air contacting the target area is clean
• Eliminates the guesswork of ionization at the target area

Applications
• Flat-panel Display
• Life Sciences
• Electronics Manufacturing
• Back-end Semiconductor Processing

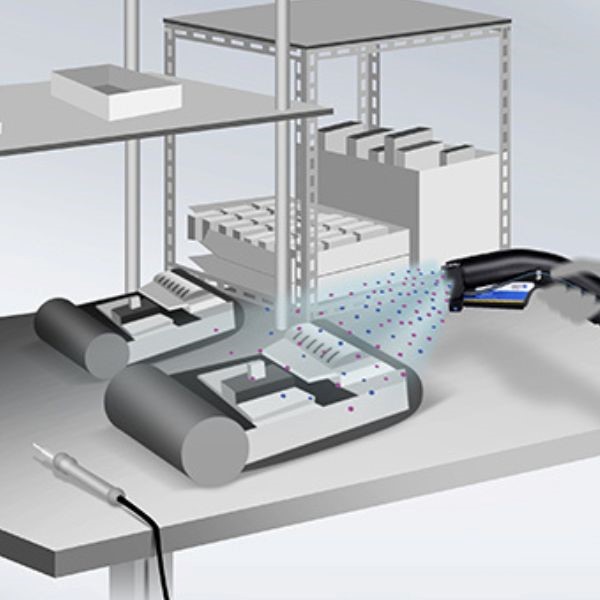

Ideal for "Point-of-Use" Ionization. The lightweight & ergononic gun hose allows the operator to point the gun nozzle directly at the target on final electronic assembly stations.
Strong blow-off power also effectively removes particle contamination.

Input Voltage 120 VAC, 60 Hz, 0.2A; 230 VAC, 50 Hz, 0.1A
Discharge 1.3 sec @ 6" (15.2cm), 30 psi (±1000-100V);0.5 sec @ 2" (5cm), 60 psi (±1000-100V)
Balance ±15V
Flow  2.4scfm @ 30 psi (68/min, 2 bar); 4.6 scfm @ 60 psi (130/min, 4 bar); 7.4 scfm @ 100 psi (210/min, 7 bar)
Blow-off Force 180g 100 psi 2" diameter target 3" from the gun
Air Pressue Pressure relief in nozzle complies with OSHA requirements
Audiable Noise 76 dbA @ 30 psi input (2 bar); 89 dbA @ 60 psi input (4 bar); 97 dbA @ 100 psi input (7 bar); measured 24" (600mm) from nozzle
Operating Env Temperature 32-104°F (0-40°C); humidity: 30-60% RH (non-condensing)
Ozone 0.001 ppm measured 18" (450mm) from gun, operation @ 15 psi (1 bar)
Filter 0.01 micron rating; replacement filters available
Gas Input 100 psi max; Clean Dry Air (CDA) or Nitrogen
Gas Connection 1/4" NPT (female)
Air Hose Static dissipative polyurethane, 7' or 14' standard, 5' or 14' with optical sensor (integral to gun and control module)
Enclosure Gun: Static dissipative polycarbonate/ABS blend; cable: static dissipative polyurethane
Dimensions 6.45"Hx5.20"Wx3.35"D (does not incl. flanges) (164H x 132W x 85D mm)
Weight Gun: 6.5 oz (185g); air hose: 1.25 ounces/ft (115g/m)



Control Module
Power 230 VAC, 50/60 Hz, .05A
Power Inlet IEC 320 with 400 mA SLO fuse
Pressure Maximum 100 psi Clean Dry Or Nitrogen (7 bar) 1/4" NPT connector, female
Dimensions 5.20"W x 6.45"H x 3.35"D (132 x 164 x 85mm)
Enclosure Powder-coated steel
Weight 6.5 lbs (2.7 kg)
