Fabricoat Series 60/100 - Industrial Quality Flock Spraying Equipment
The DCA Fabricoat Series 60/100 is our professional industrial quality system with high and low output settings allowing for a simple-to-use piece of equipment that is suitable for flocking medium sized 3D surfaces, external surfaces and flat areas. The 60/100 can cope with a variety of flock lengths, as well as offering a range of hopper sizes that allow for differing applications. It is capable of powering small tray or booth systems for the bulk flocking of smaller items.
The Fabricoat Series 60/100 can be powered from a mains supply.

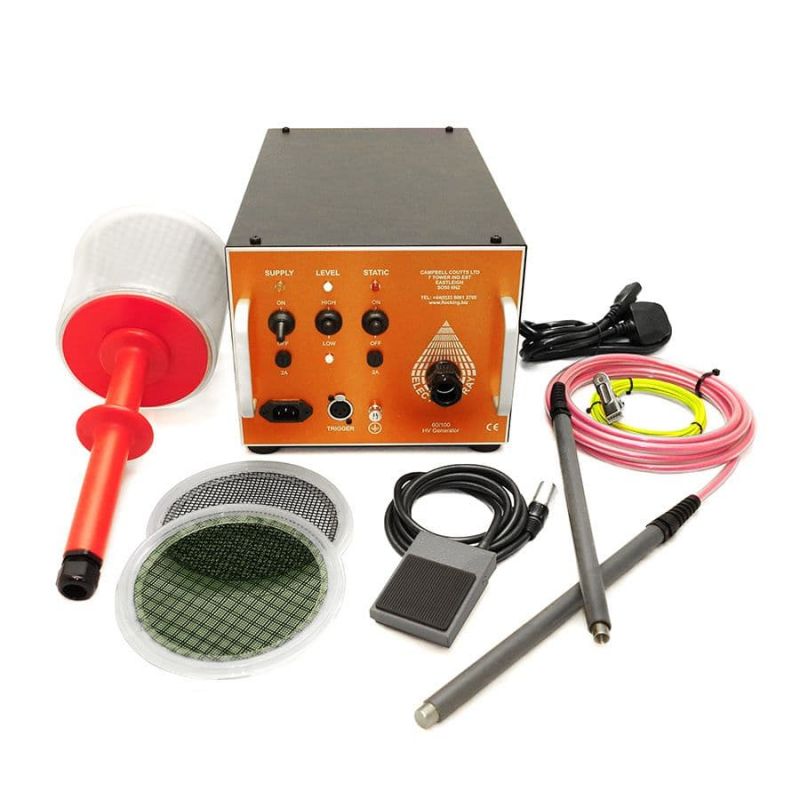

Fabricoat Series 60/100 comes complete with:
- Fabricoat Series 60/100
- 175mm Applicator Assembly
- High Voltage Cable
- Fine Mesh & Coarse Mesh
- Mains Power Lead
- Foot Switch
- Earthing Cable
- Anti-static Earth Strap
- Instruction Manual
The Fabricoat Series 60/100 is widely used for T-Shirt production and other batch assemblies.
Technical Specification
DC Output (High Voltage) Maximum 60kV negative Current 100 microAmps Power SupplyMains UK - 240 VAC 50 HzMains USA - 110 VAC 60 Hz Fuse Rating Control Panel 2A 20mm (Anti Surge) Remote Switching Control Footswitch Microswitch Cabinet Dimensions (WxHxD) 210mm x 470mm x 260mm Weight 11Kg (Cabinet Weight) 12.9Kg (System Weight inc. Accessories) |
|
