Fabricoat Series 100/200

Price: £2495.00
Product Code: E1/2BASICKIT

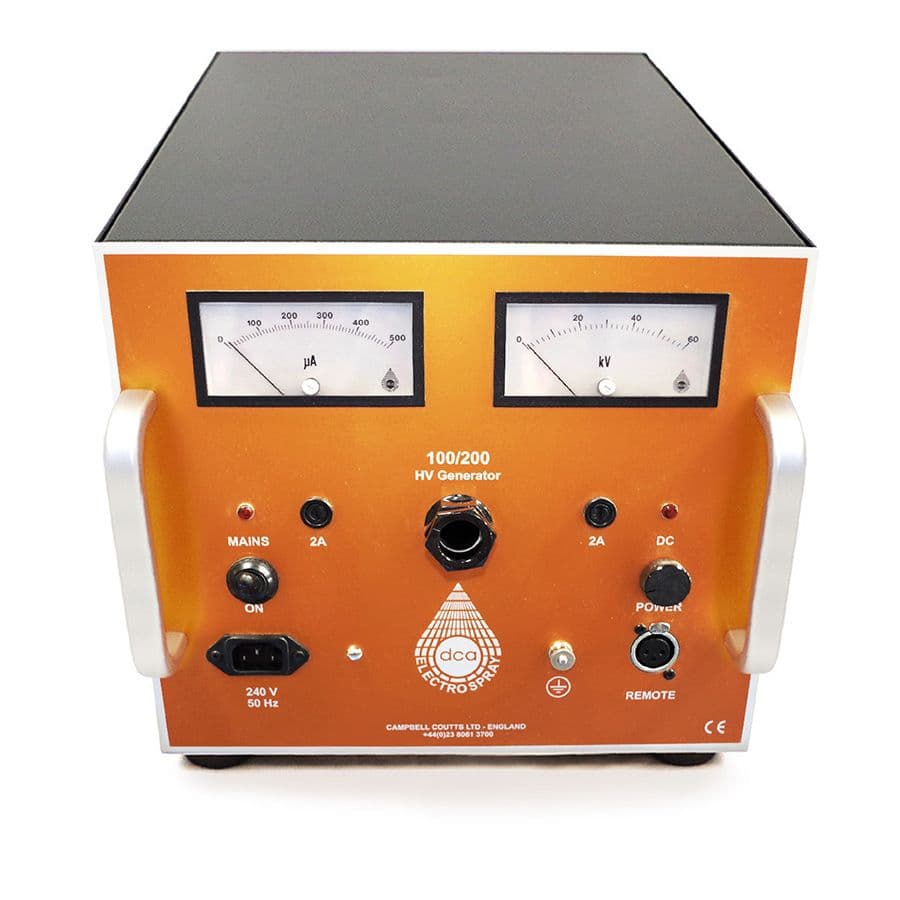

Fabricoat Series 100/200 - Industrial Quality Flock Spraying Equipment

The DCA Fabricoat Series 100/200 is our professional industrial quality system with variable output settings allowing for a simple-to-use piece of equipment that is suitable for powering small flock chambers and conveyors, as well as other smaller automated systems for the bulk flocking of smaller items. Due to its high voltage output, the 100/200 is NOT suitable for hand applicators.

The Fabricoat Series 100/200 can be powered from a mains supply or from a 24V DC supply.

Fabricoat Series 100/200 comes complete with:

• Fabricoat Series 100/200
• Mains Power Lead
• Foot Switch
• Anti-static Earth Strap
• Instruction Manual

The Fabricoat Series 100/200 is widely used for conveyor systems and other batch assemblies.

Technical Specification:

DC Output (High Voltage)
Maximum 100kV negative

Current
200 microAmps

Power Supply
Mains UK - 240 VAC 50 Hz
Mains USA - 110 VAC 60 Hz
DC - 24 VDC

Fuse Rating Control Panel
2A 20mm (Anti Surge)

Remote Switching Control
Footswitch
Microswitch

Cabinet Dimensions (WxHxD)
310mm x 490mm x 260mm

Weight
12.5Kg (Cabinet Weight)
12.9Kg (System Weight inc. Accessories)

Request your Fabricoat Series 100/200 by emailing us at [email protected] or contacting us on +44 (0)2380 613700.
