Microflocker - Mains Operated, Portable Flock Spraying Equipment with Assembly Accessories and Carry Case
The Microflocker is our mid level product with a range of output voltage settings creating a light weight and portable unit that is capable of satisfying a wide variety of low to medium volume external surface flocking requirements. Due to its variable output combined with a variety of optional applicator heads, the DCA Microflocker is able to reach the inside areas that a larger unit cannot reach. The quick change applicator heads and flock hoppers allow colour changes to be seamless and instantaneous.
The Microflocker can be powered from a mains supply or from an external 12V DC supply.

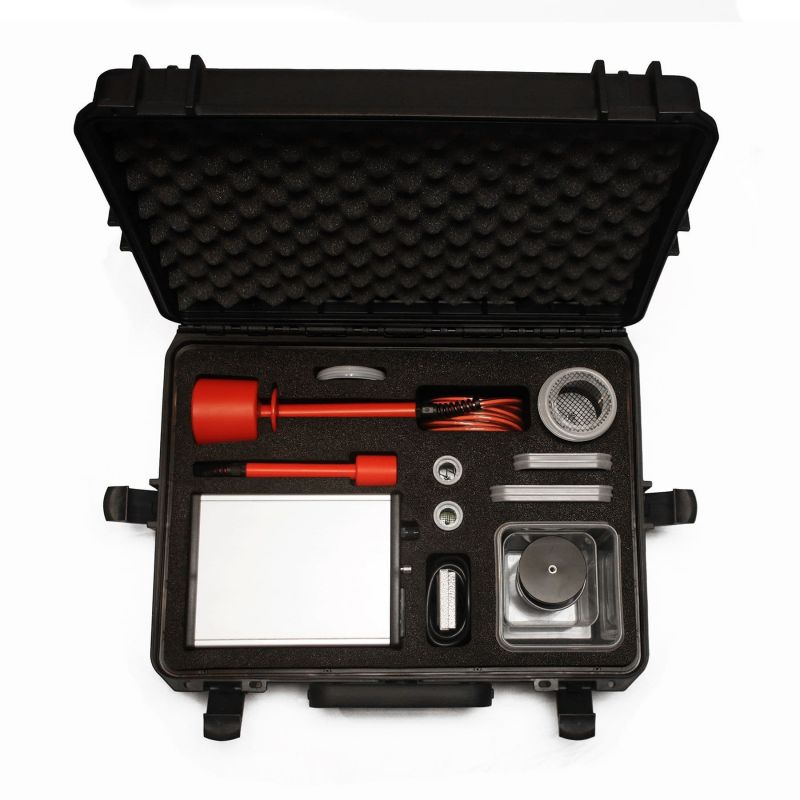

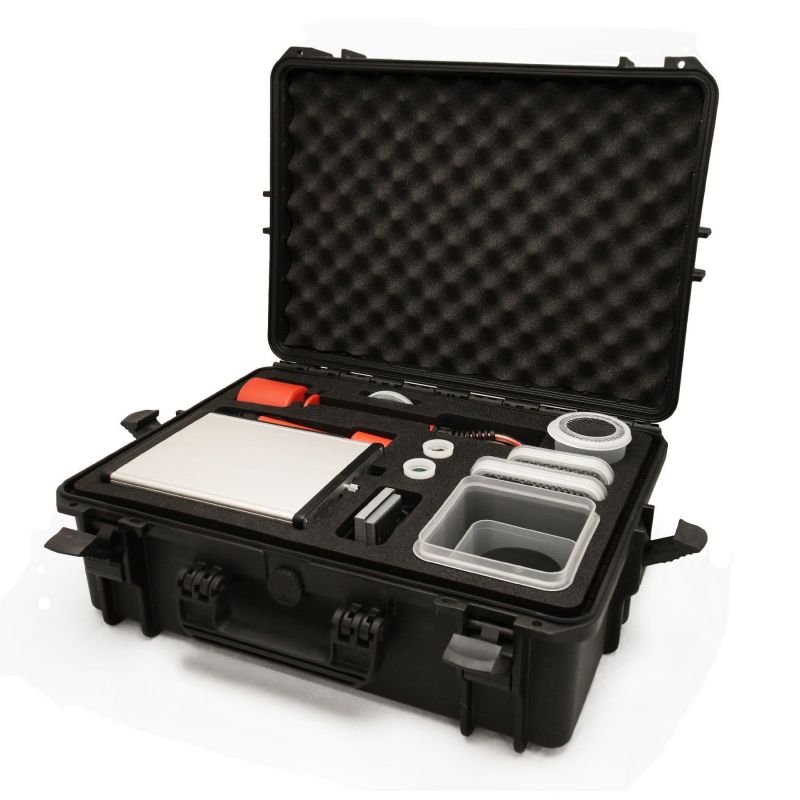

Microflocker Master Kit comes complete with:
- Microflocker
- 35mm Applicator Assembly
- 75mm Applicator Assembly
- 2x 75mm Applicator Pots
- Fine Mesh
- Coarse Mesh
- Extra Coarse Mesh
- 0.8 ltr/4" Medium Square Pot Assembly
- 1.8 ltr/5" Large Square Pot Assembly
- Applicator Adapter
- Mains Power Lead
- Foot Switch
- Earthing Cable
- Anti-static Earth Strap

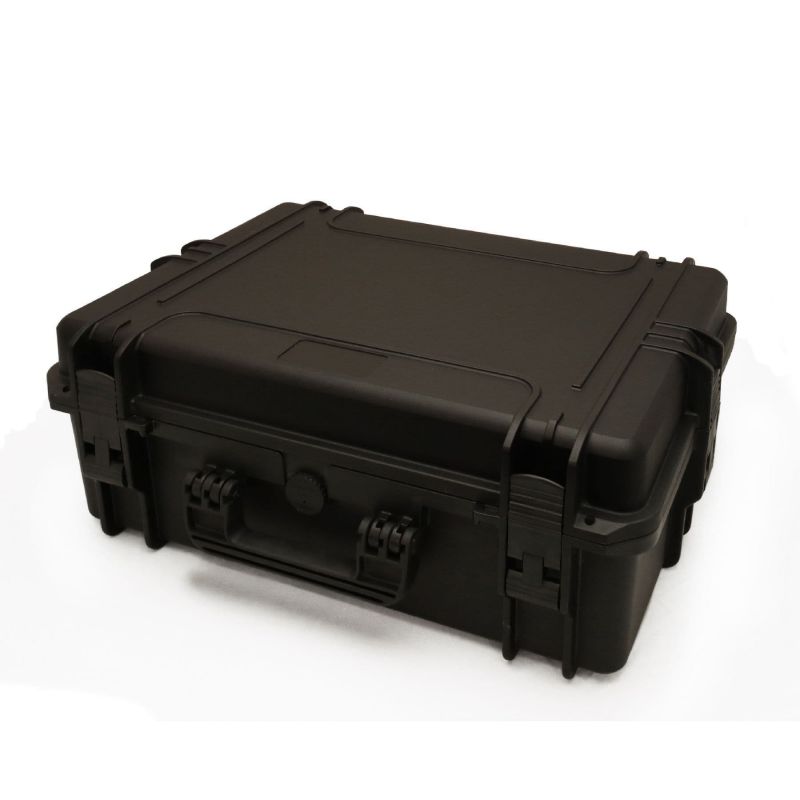

- Storage & Carry Case
- Instruction Manual
The Microflocker is widely used for car interiors and medium volume flocking of dashboards.
Technical Specification
DC Output (High Voltage) Adjustable to 45kV negative Current 45 microAmps Power Supply Mains - 115/230 VAC 50-60 Hz DC - 9 to 12 VDC Remote Switching Control Footswitch Microswitch Dimensions (LxWxH) 250mm x 170mm x 60mm (Generator) 560mm x 430mm x 230mm (Case) Weight 2.2Kg (Generator Weight) 4.0Kg (System Weight inc. Accessories) 8.5Kg (Master Kit Weight inc. Case) |
|
