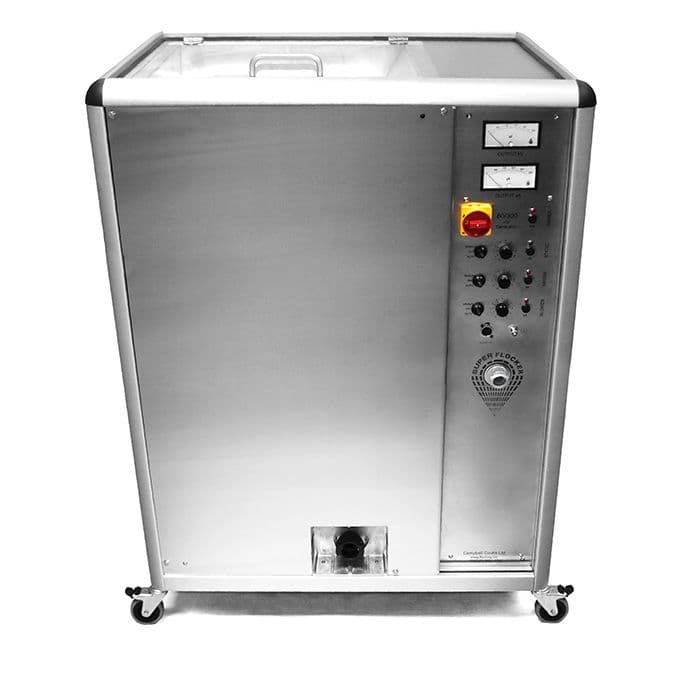

Superflocker - Industrial Blown System
Superflocker - Industrial Blown SystemItem In Stock! Item Code: ES/FBASICKIT
£8,250.00
( Incl VAT VAT £9,900.00)

Superflocker - Industrial Quality Blown Flock Spraying Equipment


The flocking of objects with pockets, cavities and corners has always created problems for flock coaters - due to the 'Faraday Cage' effect where the electrostatically charged fibres are attracted to the nearest earthed surface - stopping them from reaching into the corners! The DCA Superflocker overcomes this!

The Superflocker is an industrial quality blown electrostatic system that delivers an easily adjustable steady stream of charged flock, suitable for flocking objects which have deep recesses or sharp angles in addition to external surfaces. An optional hand-held applicator assembly is available for standard electrostatic applications and the main unit generator can be connected to flock chambers.

The Superflocker can be powered from a mains supply.

Superflocker comes complete with:

  • Superflocker
  • Applicator Gun
  • Flock Delivery Hose
  • Fine Mesh, Coarse Mesh and Extra Coarse Mesh
  • Mains Power Lead
  • Earthing Cable
  • Anti-static Earth Strap
  • Instruction Manual

The Superflocker is widely used for jewellery storage and 3D objects with hard-to-reach cavities and corners.




Technical Specification

DC Output (High Voltage)
Maximum 80kV negative

Current
240 microAmps

Power Supply
Mains UK - 220-240 VAC 50 Hz
Mains USA - 110 VAC 60 Hz

Fuse Rating Control Panel
10A 20mm (Anti Surge)

Remote Switching Control
Handswitch (via Applicator Gun)
Footswitch (Optional)


Cabinet Dimensions (WxHxD)
800mm x 1300mm x 600mm

Weight
101Kg (Cabinet Weight)
106.2Kg (System Weight inc. Accessories)

Flock Hopper Specification
Maxiumum Flock Capacity - 10Kg
Minimum Operational Capacity - 100g
Maximum Flock Length - 4.0mm
Superflocker - Industrial Quality Blown Flock Spraying Equipment


The flocking of objects with pockets, cavities and corners has always created problems for flock coaters - due to the 'Faraday Cage' effect where the electrostatically charged fibres are attracted to the nearest earthed surface - stopping them from reaching into the corners! The DCA Superflocker overcomes this!

The Superflocker is an industrial quality blown electrostatic system that delivers an easily adjustable steady stream of charged flock, suitable for flocking objects which have deep recesses or sharp angles in addition to external surfaces. An optional hand-held applicator assembly is available for standard electrostatic applications and the main unit generator can be connected to flock chambers.

The Superflocker can be powered from a mains supply.

Superflocker comes complete with:

  • Superflocker
  • Applicator Gun
  • Flock Delivery Hose
  • Fine Mesh, Coarse Mesh and Extra Coarse Mesh
  • Mains Power Lead
  • Earthing Cable
  • Anti-static Earth Strap
  • Instruction Manual

The Superflocker is widely used for jewellery storage and 3D objects with hard-to-reach cavities and corners.




Technical Specification

DC Output (High Voltage)
Maximum 80kV negative

Current
240 microAmps

Power Supply
Mains UK - 220-240 VAC 50 Hz
Mains USA - 110 VAC 60 Hz

Fuse Rating Control Panel
10A 20mm (Anti Surge)

Remote Switching Control
Handswitch (via Applicator Gun)
Footswitch (Optional)


Cabinet Dimensions (WxHxD)
800mm x 1300mm x 600mm

Weight
101Kg (Cabinet Weight)
106.2Kg (System Weight inc. Accessories)

Flock Hopper Specification
Maxiumum Flock Capacity - 10Kg
Minimum Operational Capacity - 100g
Maximum Flock Length - 4.0mm
