Turboflocker - Industrial Blown System with Applicator GunItem In Stock! Item Code: ET/FBASICKIT
£5,995.00
(Inc £7,194.00)


Turboflocker - Industrial Quality Blown Flock Spraying Equipment

The flocking of objects with pockets, cavities and corners has always created problems for flock coaters - due to the 'Faraday Cage' effect where the electrostatically charged fibres are attracted to the nearest earthed surface - stopping them from reaching into the corners!

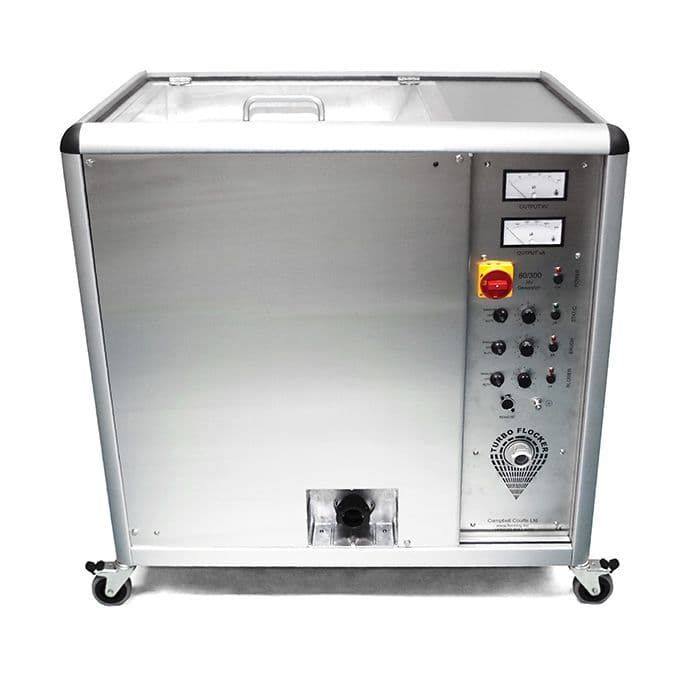

The DCA Turboflocker overcomes this!  The Turboflocker is an industrial quality blown electrostatic system that delivers an easily adjustable steady stream of charged flock, suitable for flocking objects which have deep recesses or sharp angles in addition to external surfaces. An optional hand-held applicator assembly is available for standard electrostatic applications.
The Turboflocker can be powered from a mains supply.

Turboflocker comes complete with:

  • Turboflocker

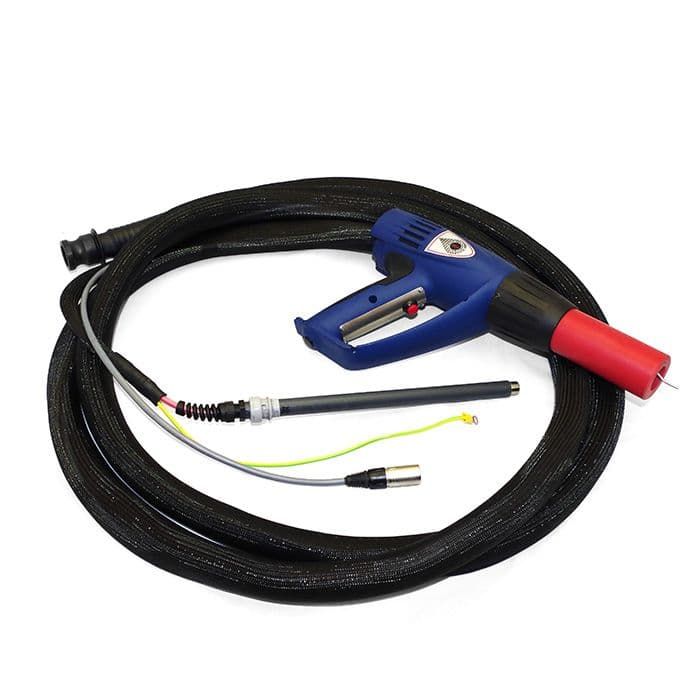

  • Applicator Gun
  • Flock Delivery Hose
  • Fine Mesh, Coarse Mesh and Extra Coarse Mesh
  • Mains Power Lead
  • Earthing Cable
  • Anti-static Earth Strap
  • Instruction Manual

The Turboflocker is widely used for jewellery storage and 3D objects with hard-to-reach cavities and corners.



Technical Specification

DC Output (High Voltage)
Maximum 80kV negative

Current
240 microAmps

Power Supply
Mains UK - 220-240 VAC 50 Hz
Mains USA - 110 VAC 60 Hz

Fuse Rating Control Panel
10A 20mm (Anti Surge)

Remote Switching Control
Handswitch (via Applicator Gun)
Footswitch (Optional)


Cabinet Dimensions (WxHxD)
800mm x 900mm x 600mm

Weight
96Kg (Cabinet Weight)
101.2Kg (System Weight inc. Accessories)

Flock Hopper Specification
Maximum Flock Capacity - 6Kg
Minimum Operational Capacity - 100g
Maximum Flock Length - 4.0mm
